Non-Corrosive Manual or Power Rewind Reels
To handle single 3/8″ through 5/8″ I.D. hose
Lawn Care / Pest Control / Pressure Washing / Agriculture / High Pressure / Horticulture
Lightweight, low-profile reels designed for hose lengths up to 500 ft.
Primarily 304 SST construction, including discs, axle hub and welded frame.
Non-SST components: Drum (Aluminum), Swivel Joint, Bearings (Plated).

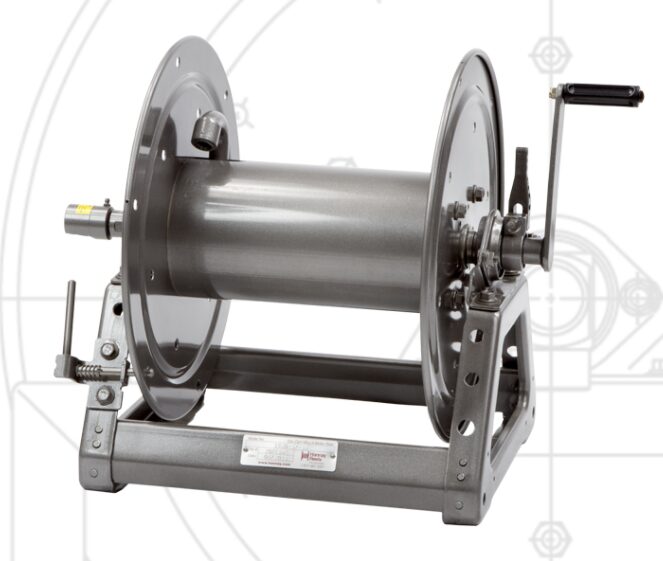

Manual (direct crank) reels include both pin lock and 3-position cam-lock drag brake.

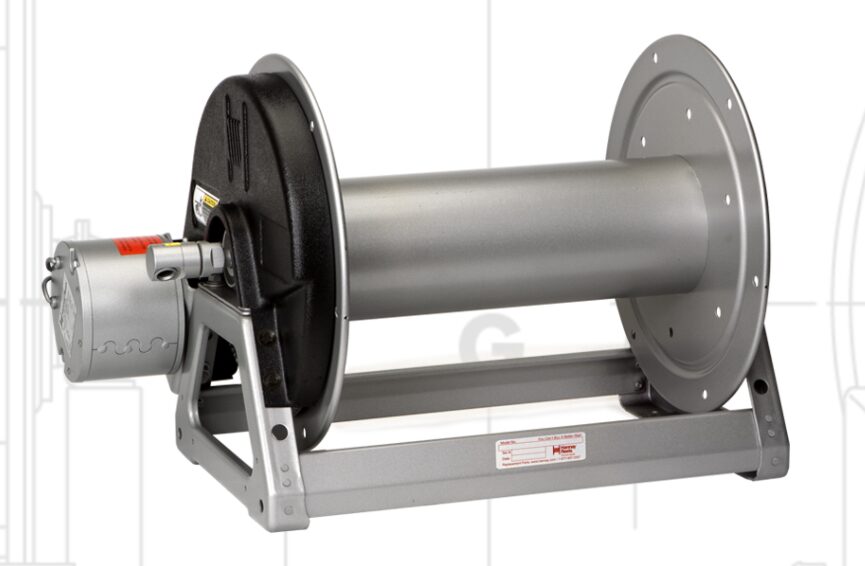

Electric rewind reels (denoted by letter ‘E’ at end of model) feature plated chain/sprocket drive with guard.
Standard inlet: 90° full-flow swivel, 1/2″ FNPT threads. Standard outlet: 1/2″ FNPT threads.
Standard pressure rated to 3000 psi (207) bar. Higher pressures available, consult factory.

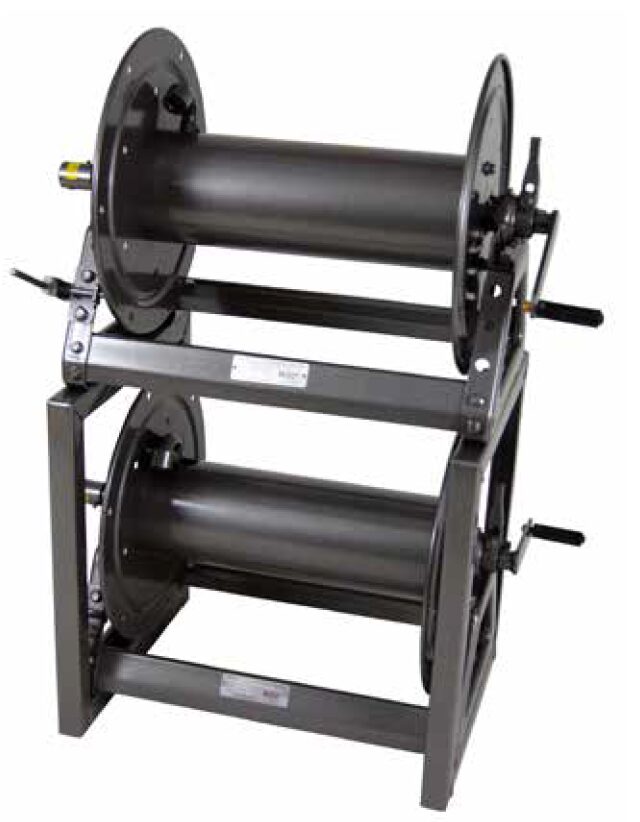

Optional aluminum stackable frame available (for manual rewind reels).
Optional SST rollers and roller mounting brackets.
